EWAC WS11
Detail
File

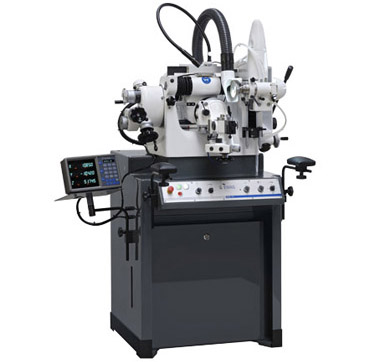

The WS 11 and WS 11-SP universal grinding machines are particularly suitable for the manufacture and regrinding of high-precision micro tools and production parts from hard metal, steel or other materials.
The WS11 universal grinding machine makes it possible to manufacture and regrind micro tools and production parts from hard metal, HSS or other materials. Thanks to the hydrostatic grinding spindle the thermal expansion is consistently defined, making tolerances of 0.0002 mm possible. At the same time the machining process can be observed and monitored 1:1 with the optical measuring system as the grinding wheel engages.
Advantages that fulfil all requirements:
? With the WS 11 concept, cylindrical and conical tools can be ground and measured in a single clamping.
? Both individual parts and smaller batches are ground cost-effectively.
? An extensive range of accessories enables quick adaptation of the machine to the respective machining task.
Highest precision in conjunction with performance and reliability help to considerably increase the quality of tools in many industry branches.
Benefits:
Measuring and grinding in one clamping
Hydrostatic slide bearing
Wheel dressing on the machine
Versatile
Up to 10 axes, no limits on geometries
Variety of accessories
Ergonomic design...Fits you like a glove
No comparable machine on the market

:: Technical ::
Grinding spindle drive, three-phase motor kW (rpm): 0,3
Speed range 1/min:2500/3500/4800/6800
X-axis, transverse adjustment mm:100
X-axis, reading accuracy mm:0,01
Speed variable rpm:100-1300 102 mm / 25 kg:100
Y-axis, grinding stroke vertical, straight mm:150 mm / 100 kg:0,01
Y-axis, reading accuracy mm:
Z-axis, infeed stroke horizontal mm:100
Z-axis reading accuracy mm:0,001
Workpiece spindle drive kW:0,25
